Main advantages:

For 0-10V dimmable led drivers.

No need any switchboard.

Easy and safe installation (low voltage device.

Protection against short circuit.

Double temperature safety feature.

Control up to 100 drivers

Display output as W or %.

Auto shutdown at temperature setting.

APP smart control for dimming of lights.

Description of Product:

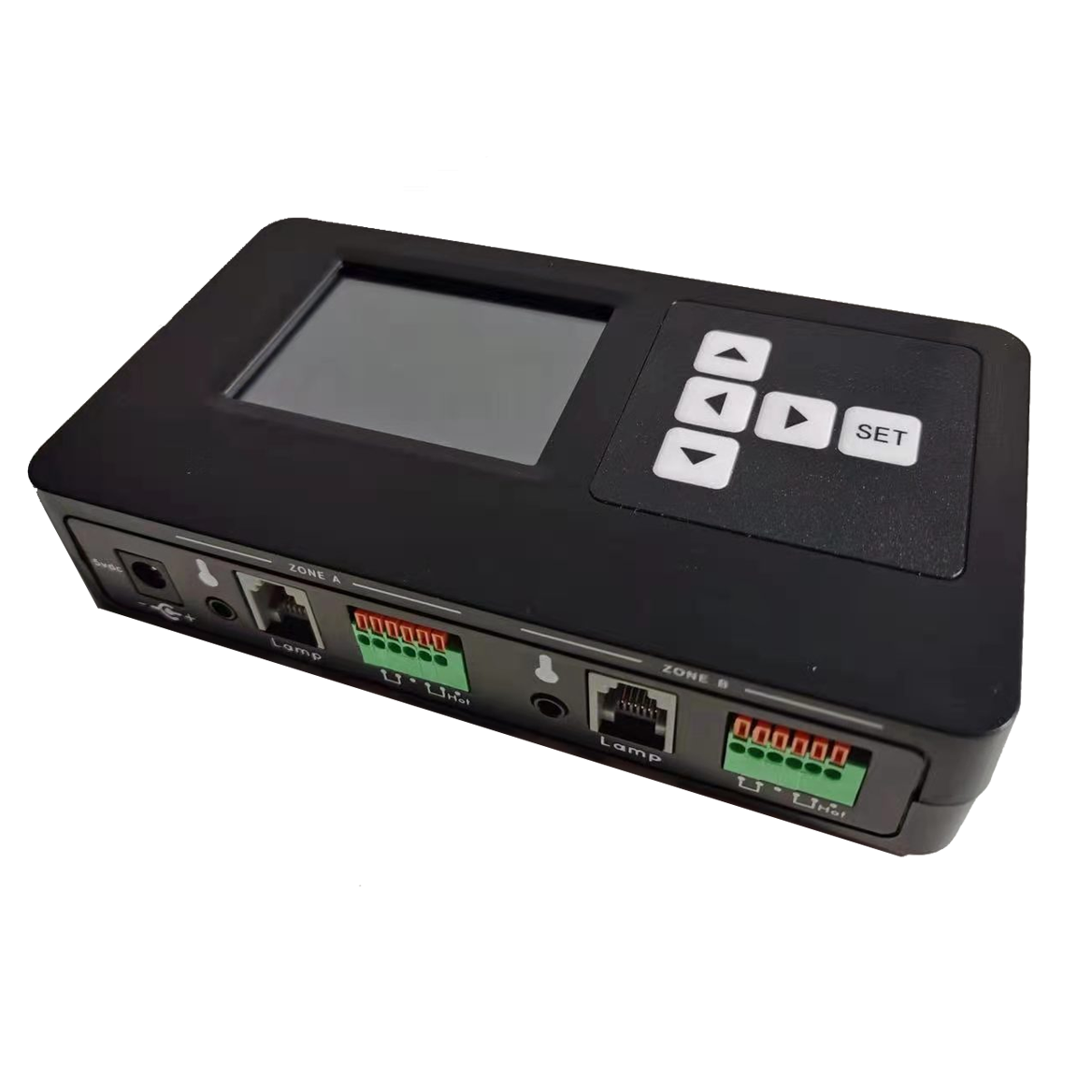

Product Name:  Smart DIM Controllers.

Signal:                0-10V.

Application:         Indoor grow lights.

Control qty:         100pcs for led grow lights or HPS lights,

                            LED lights should be different according to different LED driver parameter.

Control way:        Manual panel or App control

Function:              auto dimming/light on, light off with sunrise, sunset simulation.

Warranty:             2 years.

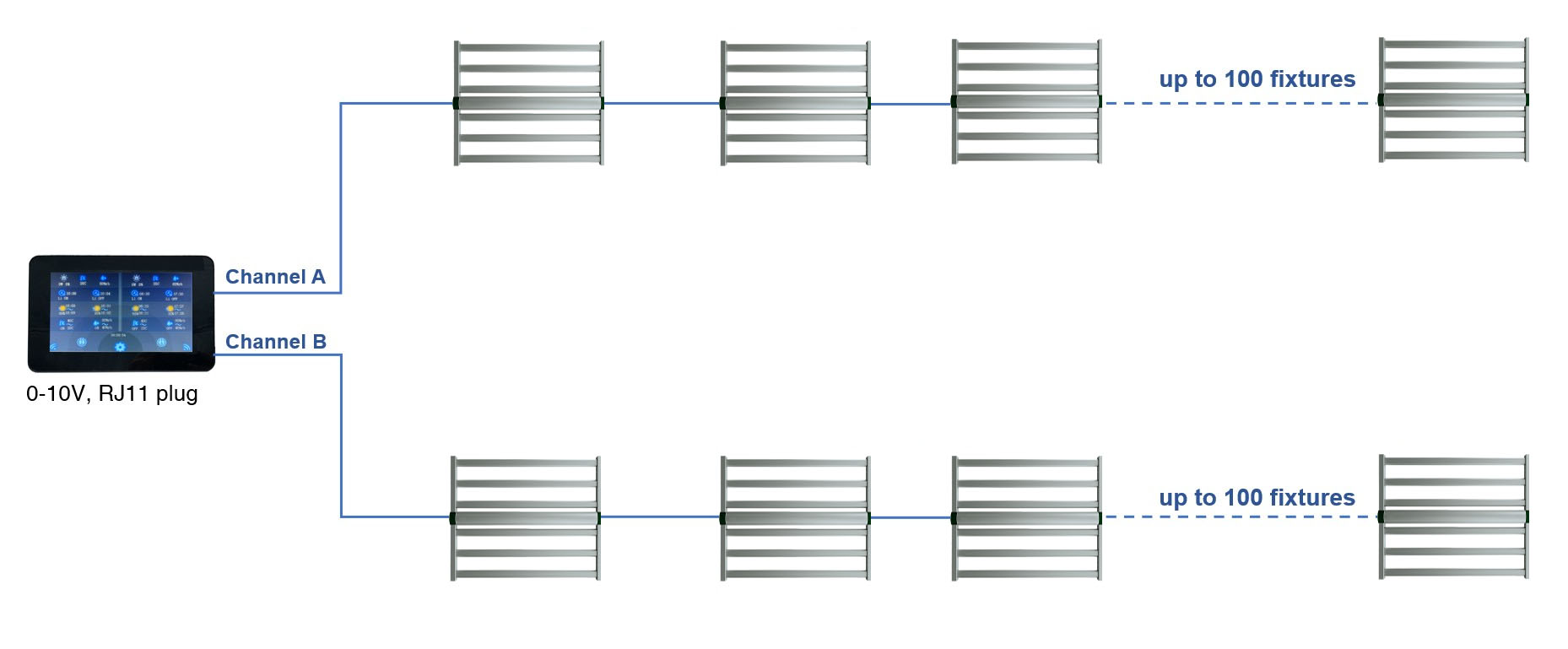

Connection Introduction:

Connecting the smart controller to lights

1) Switch the rotary knob on all lights to EXT.

2) Plug the RJ14 end of the provided controller cable into the RJ14  main port of controller.

3) Plug the RJ14 end of the controller cable into the input of a RJ14 splitter, Use an interconnect cable to connect one output of RJ14 splitter to the RJ14 port the light.

4) Use an interconnect cable to connect one output of the RJ14 splitter to the input of the following RJ14 splitter.

5) Repeat this process to connect up to 100 lights.
